Infrared pyrometer with integrated controller for OEM
thermoMETER CS
Miniature infrared sensors for OEM applications

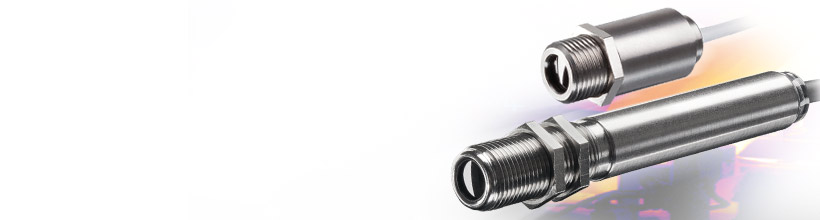

The infrared thermoMETER CS temperature sensors are equipped with a miniature sensor that is particularly suitable for installation in confined spaces. The small size and temperature resistance up to 120°C open up a wide range of applications.
The infrared temperature sensors are available in different versions, e.g., with laser aiming or as a two-wire version for easy integration.
Characteristics
- Controller in the sensor or cable
- Temperature range from -40 °C to +1600 °C
- OEM products for high-volume production
- Robust, silicon-coated lens
- Adjustable signal processing
Characteristics
- Measuring range (°C): -30 to 1600
- Optical resolution 50:1 | 300:1
- Spectral range 8 to 14µm | 1.6µm
- Up to 85°C ambient temperature without cooling
- Integrated electronics
- High optical resolution
- Selectable close focus
- Emissivity adjustment directly at the sensor or via software

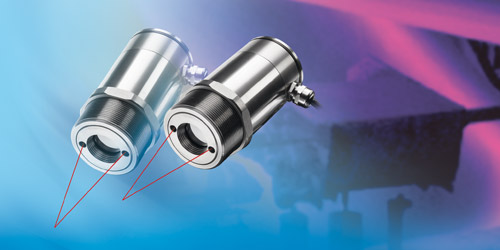

- Laser sighting for spot size marking
Downloads
Catalog thermoMETER (PDF, 3.87 MB)
Basics of non contact temperature measurement (PDF, 1.3 MB)
Data sheet thermoMETER CSlaser
Manual thermoMETER CSLaser (PDF, 627 KB)
CAD file 3D-model "thermoMETER CSmi sensor head and electronics", STEP (ZIP, 1.03 MB)
CAD file 3D-model "thermoMETER CS SF15 Sensorhead", STEP (ZIP, 103 KB)Software "CompactConnect" for stationary infrared sensors thermoMETER
Characteristics

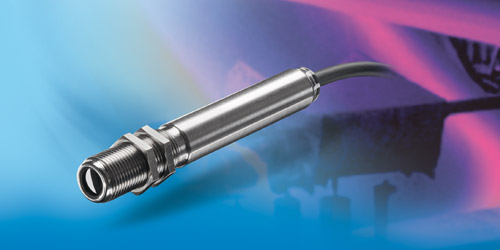

- Measuring range (°C): -40 to 400
- Optical resolution 15:1
- Spectral range 8 to 14µm
- Up to 80 °C ambient temperature without cooling
- Integrated electronics with LED alarm indication and smart sighting aid
- Scalable analog output
- Best price – ideal for OEM
Downloads
Catalog thermoMETER (PDF, 3.87 MB)
Basics of non contact temperature measurement (PDF, 1.3 MB)
Data sheet thermoMETER CS
Data sheet thermoMETER CS V3 (PDF, 633 KB)
Manual thermoMETER CS (PDF, 1.67 MB)
Assembly instructions thermoMETER CS (PDF, 734 KB)
Additional Informationm of USB interface module for thermoMETER CS (PDF, 395 KB)
CAD file 3D-model "thermoMETER CSmi sensor head and electronics", STEP (ZIP, 1.03 MB)
CAD file 3D-model "thermoMETER CS SF15 Sensorhead", STEP (ZIP, 103 KB)Software "CompactConnect" for stationary infrared sensors thermoMETER
Characteristics
- Measuring range (°C): -40 to 1030
- Optical resolution 2:1 / 15:1
- Spectral range 8 to 14 µm
- Ambient temperatures up to 120 °C without cooling

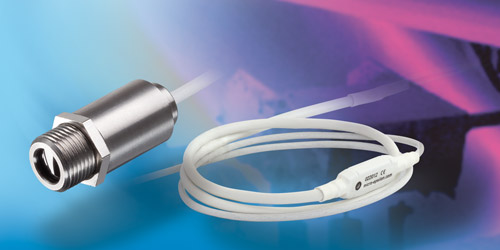

- Electronics integrated in the cable
- Temperature resolution up to 0.025°C
- Best price – ideal for OEM
Downloads
Catalog thermoMETER (PDF, 3.87 MB)
Basics of non contact temperature measurement (PDF, 1.3 MB)
Data sheet thermoMETER CSmicro
Manual thermoMETER CSmicro / CSmicro 2W (PDF, 4.12 MB)
CAD file 3D-model "thermoMETER CSmi sensor head and electronics", STEP (ZIP, 1.03 MB)
CAD file 3D-model "thermoMETER CS SF15 Sensorhead", STEP (ZIP, 103 KB)Software "CompactConnect" for stationary infrared sensors thermoMETER
Characteristics
- Measuring range (°C): -40 to 1600
- Optical resolution 15:1 / 22:1 / 40:1 / 75:1
- Spectral range 8 - 14µm or 1,6µm
- Electronics integrated in the cable
- Scalable 4-20mA two-wire analog output
- Optional USB interface
- Up to 125°C ambient temperature without cooling
Downloads
Catalog thermoMETER (PDF, 3.87 MB)
Basics of non contact temperature measurement (PDF, 1.3 MB)
Data sheet thermoMETER CSmicro 2W
Manual thermoMETER CSmicro / CSmicro 2W (PDF, 4.12 MB)
CAD file 3D-model "thermoMETER CSmi sensor head and electronics", STEP (ZIP, 1.03 MB)
CAD file 3D-model "thermoMETER CS SF15 Sensorhead", STEP (ZIP, 103 KB)Software "CompactConnect" for stationary infrared sensors thermoMETER

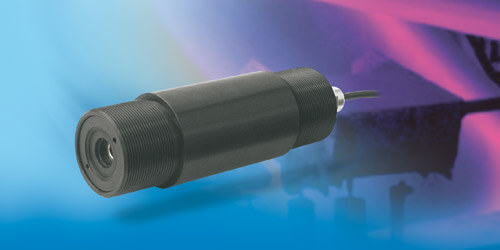

Characteristics
- Measuring range (°C): -30 to 900
- Optical resolution 15:1 or 22:1
- Spectral range 8 to 14 µm
- High resolution model available with 0.025°C
- Easy two-wire installation
- Optional USB Interface
- Alarm output
- Simultaneous two-wire output and digital communication
Downloads
Catalog thermoMETER (PDF, 3.87 MB)
Basics of non contact temperature measurement (PDF, 1.3 MB)
Data sheet thermoMETER CX
Manual thermoMETER CX (PDF, 476 KB)
CAD file 3D-model "thermoMETER CSmi sensor head and electronics", STEP (ZIP, 1.03 MB)
CAD file 3D-model "thermoMETER CS SF15 Sensorhead", STEP (ZIP, 103 KB)Software "CompactConnect" for stationary infrared sensors thermoMETER
